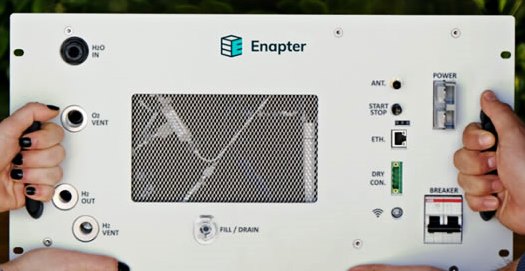

AEM ELECTROLYSER (AIR COOLED / LIQUID COOLED)

Model: EL 4.1/ EL 4.1LC.

Enapter’s patented Anion Exchange Membrane (AEM) Electrolyser is a standardized, stackable and flexible system to produce on-site hydrogen. The modular design-paired with advanced software integration-allows setup in minutes and remote control and management. Stack this electrolyser to achieve the required hydrogen flow rate

Whether replacing grey H2, Creating new applications or installing long-term energy storage, our patented AEM Technology scales up as you do: Take single electrolysers to pilot your solutions and easily expand with extra modules for greater green hydrogen capacity.

Super low lead time – Receive your electrolyzer and start producing hydrogen in weeks, not months or years. We stand for play and play products not engineering projects.
Ease of integration and use – Commission your EL4 with minutes with the Enaptes App monitor and control its performance online in real time through cloud. Get support as needed.
Modular and scalable – Our EL4 enables you to move from demo to business case: start with one module and stack more as needed, in cabinets or 19” racks 19’’.
Low maintain requirements.
Liquid and Air cooled variants available.

Testing, research and development-your university or research center can test fuel cells, combustion engines, boilers and more with green hydrogen produced on site with bus EL4 electrolyser. Train the next generation of hydrogen specialists with easy to use AEM technology.
Prove your H2 business model – whether you are building a refilling station, replacing fossil gas in industrial process or trialing decarburization with renewable hydrogen.
Electricity storage heeds (<70KW) – From backup power to electrifying remote locations, providing telecom towers with uninterrupted supply or even supporting critical buildings homes, our EL4 unlocks small-scale power storage at the cost and capacity you need.
Regular supply of green hydrogen (<50kg) small and medium – sized enterprises and laboratories require small quantities of hydrogen for their daily activities in applications ranging from nitrogen purification to experimental consumption. Our AEM EL4 electrolyser meats your needs from day one.

Model:	EL4.1		EL4.1LC
Production rate	Up to 500 NL/h Up to 1.0785kg/24h
Hydrogen output purity	35bar: 99.9% 8bar : 98.8%
Output pressure	Up to 35bar
Operative power consumption	2.4Kw, beginning of life
Heat dissipation	0.6Kw, Beginning of life
Stand by power consumption	0.03Kw
Power supply	208-240V AC, 50/60Hz single phase
Water input requirements	Recommends Type II According to ASTMD 1193-06 acidity<0.1 meals, conductivity <2lis/cm.
Water consumption	˜420mL/h
Water input pressure range	1-4bar
Cooling water pressure range	Air cooled	1-4bar
Cooling water temperature range	Air cooled	5◦C - 40◦C
Cooling water flow	Air cooled	1-2 L/min
Ambient operative Temperature range	5◦C - 45◦C
Ambient operative temperature range	Up to 90% humidity, non-condensing
Storage conditions	2◦C to 55◦C, up to 90% humidifying condensing
IP Rating	IP 20
dimensions (W×D×H mm)	482×635×266mm
Weight	41kg
Space inside cabinet	6V
Control and monitoring	Fully automotive with Enapter’s EMS via 2.4 AHZ, Wi-Fi and Bluetooth Modbus TCP Over Ethernet
Conforming	CE mark according to the machine directive 2006/421cm3 VKCA mask according to supply machinery (safety) Regulation 20084 CSA/ANSI. B22734: 2023.Ed.l Hydrogen Generator using water electrolysis Industrial, commercial and using water electrolysis –Industrial, commercial and Residential Applications.
